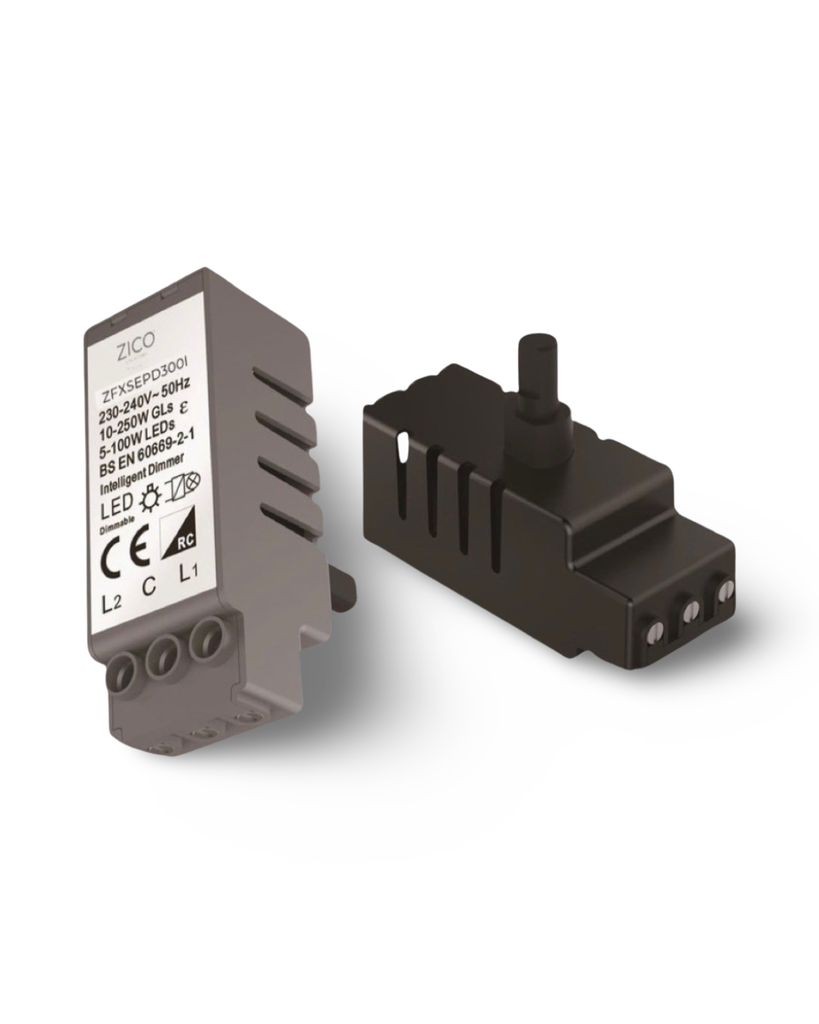

Multi-way LED Dimmer Module 300W

https://www.zico.lighting/web/image/product.template/171/image_1920?unique=6aba2d2

£ 33.70 £ 33.70 33.7 GBP ex VAT

£ 50.55

    This combination does not exist.

    Contact Us

    Terms and Conditions

    Designed for switching and dimming dimmable LED lamps as well as incandescent lamps, HV halogen lamps and transformers with halogen lamps this multi-way LED dimmer module is suitable for mixed operation up to the specified output.

    • Dimming Method: Trailing and Leading edge phase control

    • Auto detect the load type

    • Multi way control

    • Short-circuit Protection

    • Overload Protection

    • Over Current Protection

    • Overheating Protection

    • Warranty: 2 years

      Approvals: CE


    • Rated Voltage: AC 220-240 V ~ , 50Hz

    • Connected Load: 3VA - 300VA (1-15LEDs,Max.250W)

    • Type of Loads:

      • 220 - 240V AC Incandescent lamps

      • High voltage halogen lamps

      • Dimmable electrical transformer and iron transformer

      • Mixed load of the specified types

    • Connection: Screw Terminal

    • Dimensions: 63*26*22mm

    • Weight: 29g
